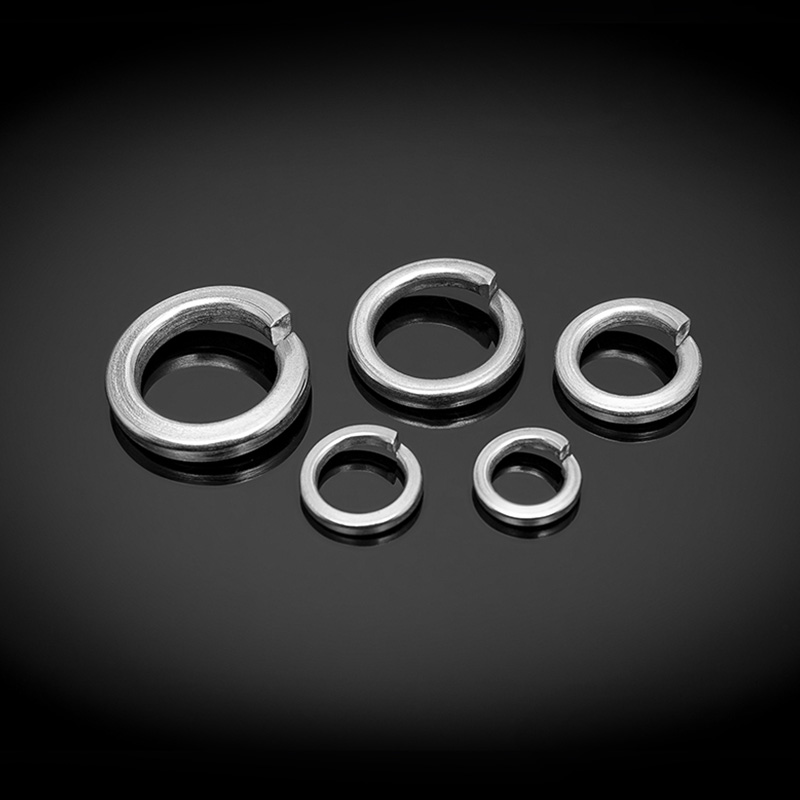

DIN127 Steel Spring Washers

DIN127 Steel Spring Washers
DIN127 Steel Spring Washers DIN127 Steel Spring Washers

Species Characteres

Vexillum rotundum designat, munus fundamentale onus distributionis praebet, plerumque metallum, superficies lenis

Internus Features

Internum foramen est mensurae magnitudinis, vulgo pro cochleae nexibus vexillum.

Core Propositum

Usus est ad nexum cum communibus oneribus ne induantur et provideant distributioni onus

Commoda et Features

Solutionem simplicem et efficacem praebet, late in instrumento conventionali et nexus adhibito

Typical Usus

Apta machinamenta mechanico et levi onere nexus

Key Indicatores ad Electio

Magnitudo (diameter, crassitudo, foramen diameter), materia (ferrum immaculatum vel aliud metallum)

Industria Imprimis Requisita

Machinaria industria: Idonea ad placitum onus nexus, humilis sumptus applications.

PREV：ASME/ANSI B18.21.3 (ANSI) Steel Spring WashersDEINDE：Nullus proximus articulum

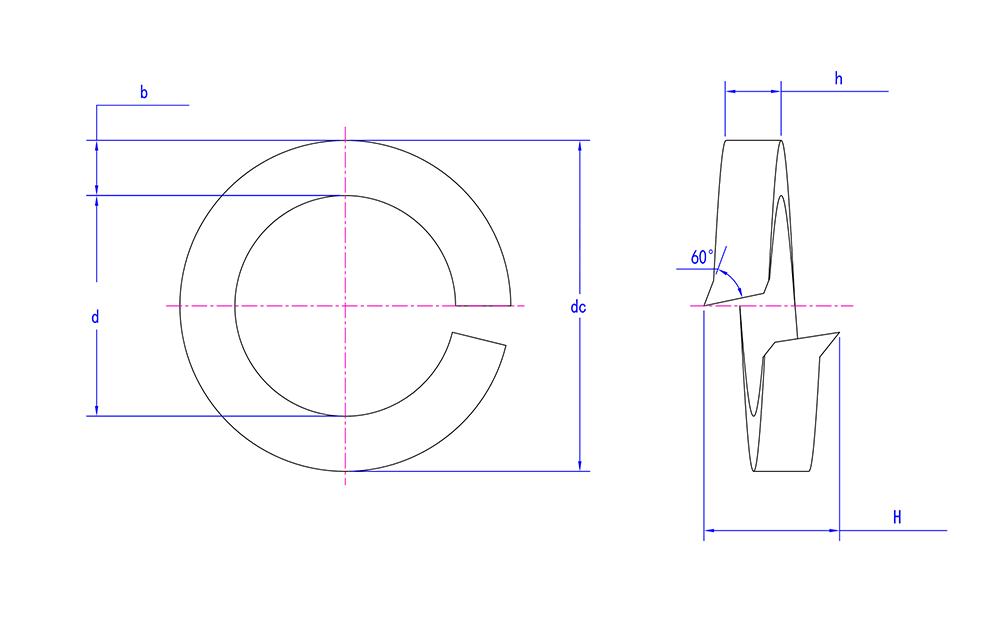

Specificatio product:

Mon Φ3 Φ3.5 Φ4 Φ5 Φ6 Φ7 Φ8 Φ10 Φ12 Φ14 Φ16 Φ18 Φ20 Φ22 Φ24 Φ27 Φ30 Φ36 Φ39 Φ42 Φ45 Φ48 Φ52 Φ56 Φ60 Φ64 Φ68 Φ72 Φ80 Φ90 Φ100
d min 3.1 3.6 4.1 5.1 6.1 7.1 8.1 10.2 12.2 14.2 16.2 18.2 20.2 22.5 24.5 27.5 30.5 36.5 39.5 42.5 45.5 49 53 57 61 65 69 73 81 91 101
d max 3.4 3.9 4.4 5.4 6.5 7.5 8.5 10.7 12.7 14.7 17 19 21.2 23.5 25.5 28.5 31.7 37.7 40.7 43.7 46.7 50.5 54.5 58.5 62.5 66.5 70.5 74.5 82.5 92.5 102.5
b max 1.4 1.4 1.6 1.9 2.65 2.65 3.15 3.7 4.2 4.7 5.2 5.2 6.2 6.2 7.25 7.25 8.25 10.25 10.25 12.25 12.25 12.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25
b min 1.2 1.2 1.4 1.7 2.35 2.35 2.85 3.3 3.8 4.3 4.8 4.8 5.8 5.8 6.75 6.75 7.75 9.75 9.75 11.75 11.75 11.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75
h max 0.9 0.9 1 1.3 1.7 1.7 2.1 2.35 2.65 3.15 3.7 3.7 4.2 4.2 5.2 5.2 6.2 6.2 6.2 7.25 7.25 7.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25
h min 0.7 0.7 0.8 1.1 1.5 1.5 1.9 2.05 2.35 2.85 3.3 3.3 3.8 3.8 4.8 4.8 5.8 5.8 5.8 6.75 6.75 6.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75
H min 1.9 1.9 2.1 2.7 3.6 3.6 4.6 5 5.8 6.8 7.8 7.8 8.8 8.8 11 11 13.6 13.6 13.6 15.6 15.6 15.6 18 18 18 18 18 18 18 18 18
H max 2.1 2.2 2.5 3.2 4.2 4.2 5.4 5.9 6.8 8 9.2 9.2 10.4 10.4 13 13 16.1 16.1 16.1 18.4 18.4 18.4 21.2 21.2 21.2 21.2 21.2 21.2 21.2 21.2 21.2
dc max 6.2 6.7 7.6 9.2 11.8 12.8 14.8 18.1 21.1 24.1 27.4 29.4 33.6 35.9 40 43 48.2 58.2 61.2 68.2 71.2 75 83 87 91 95 99 103 111 121 131
