DIN 912 Steel Hexagon Socket Head Cap Cochleas

DIN 912 Steel Hexagon Socket Head Cap Cochleas
DIN 912 Steel Hexagon Socket Head Cap Cochleas DIN 912 Steel Hexagon Socket Head Cap Cochleas DIN 912 Steel Hexagon Socket Head Cap Cochleas DIN 912 Steel Hexagon Socket Head Cap Cochleas

Caput Features

Internum sexangulae caput

Virga Features

Longitudo plena filum

Core Propositum

Pro instrumento mechanico nexus qui institutionem torquem requirunt

Commoda et Features

Fortis ligamen, potest sustinere magnum torquem

Typical Usus

Apta ad apparatus machinae, partes automotivae.

Key Indicatores ad Electio

Fulmen longitudo, diameter, filum specificationis, capacitatis onus

Industria Imprimis Requisita

Automotiva industria: tremor requirit resistentiam et aptam ad altum onerat.

PREV：DIN (VII)CMXCI Steel Hexagon Socket Countersunk Caput CochleasDEINDE：Nullus proximus articulum

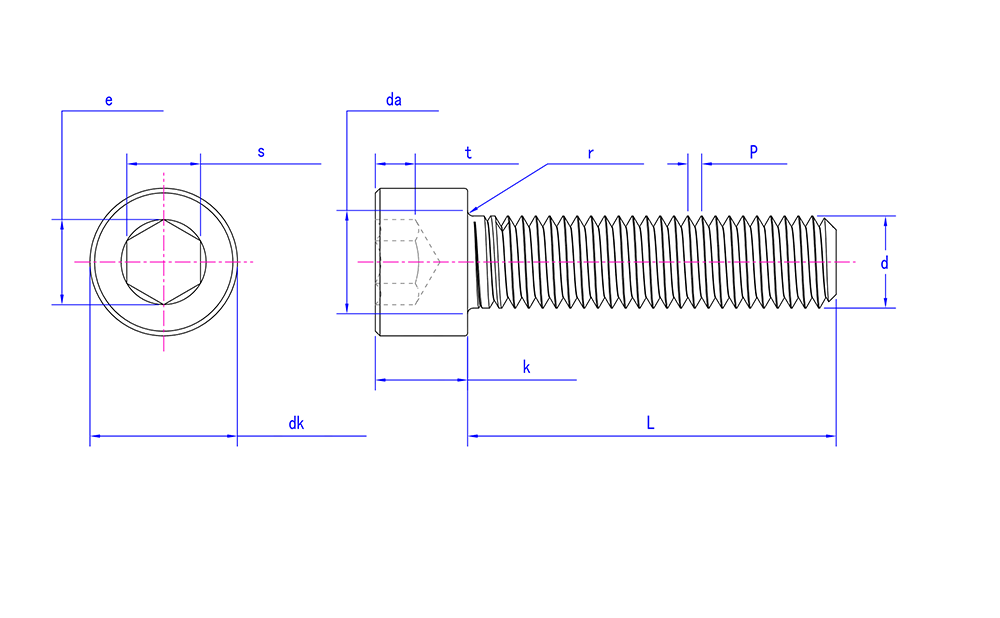

Specificatio product:

Mon M1.4 M1.4 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56 M64 M72 M80 M90 M100
P 0.3 0.3 0.4 0.45 0.5 0.7 0.8 1 1|1.25 1|1.25|1.5 1.25|1.5|1.75 1.5|2 1.5|2 1.5|2|2.5 1.5|2|2.5 1.5|2|2.5 2|3 2|3 2|3.5 2|3.5 3|4 3|4.5 3|5 4|5.5 4|6 4|6 4|6 4|6 4|6
dk max * 2.6 2.6 3.8 4.5 5.5 7 8.5 10 13 16 18 21 24 27 30 33 36 40 45 50 54 63 72 84 96 108 120 135 150
dk min 2.46 2.46 3.62 4.32 5.32 6.78 8.28 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67 32.61 35.61 39.61 44.61 49.61 53.54 62.54 71.54 83.46 95.46 107.46 119.46 134.37 149.37
da max 1.8 1.8 2.6 3.1 3.6 4.7 5.7 6.8 9.2 11.2 13.7 15.7 17.7 20.2 22.4 24.4 26.4 30.4 33.4 36.4 39.4 45.5 52.6 63 71 79 87 97 107
e min 1.5 1.5 1.73 2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 13.72 16 16 19.44 19.44 21.73 21.73 25.15 27.43 30.85 36.57 41.13 46.83 52.53 62.81 74.21 85.61 97.04
k max 1.4 1.4 2 2.5 3 4 5 6 8 10 12 14 16 18 20 22 24 27 30 33 36 42 48 56 64 72 80 90 100
k min 1.26 1.26 1.86 2.36 2.86 3.82 4.82 5.7 7.64 9.64 11.57 13.57 15.57 17.57 19.48 21.48 23.48 26.48 29.48 32.38 35.38 41.38 47.38 55.38 63.26 71.26 79.26 89.13 99.13
r min 0.1 0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.4 0.4 0.6 0.6 0.6 0.6 0.8 0.8 0.8 1 1 1 1 1.2 1.6 2 2 2 2 2.5 2.5
s min 1.32 1.32 1.52 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 12.032 14.032 14.032 17.05 17.05 19.065 19.065 22.065 24.065 27.065 32.08 36.08 41.08 46.08 55.1 65.1 75.1 85.12
s max 1.36 1.36 1.56 2.06 2.58 3.08 4.095 5.14 6.14 8.175 10.175 12.212 14.212 14.212 17.23 17.23 19.275 19.275 22.275 24.275 27.275 32.33 36.33 41.33 46.33 55.4 65.4 75.4 85.47
t min 0.6 0.6 1 1.1 1.3 2 2.5 3 4 5 6 7 8 9 10 11 12 13.5 15.5 18 19 24 28 34 38 43 48 54 60
