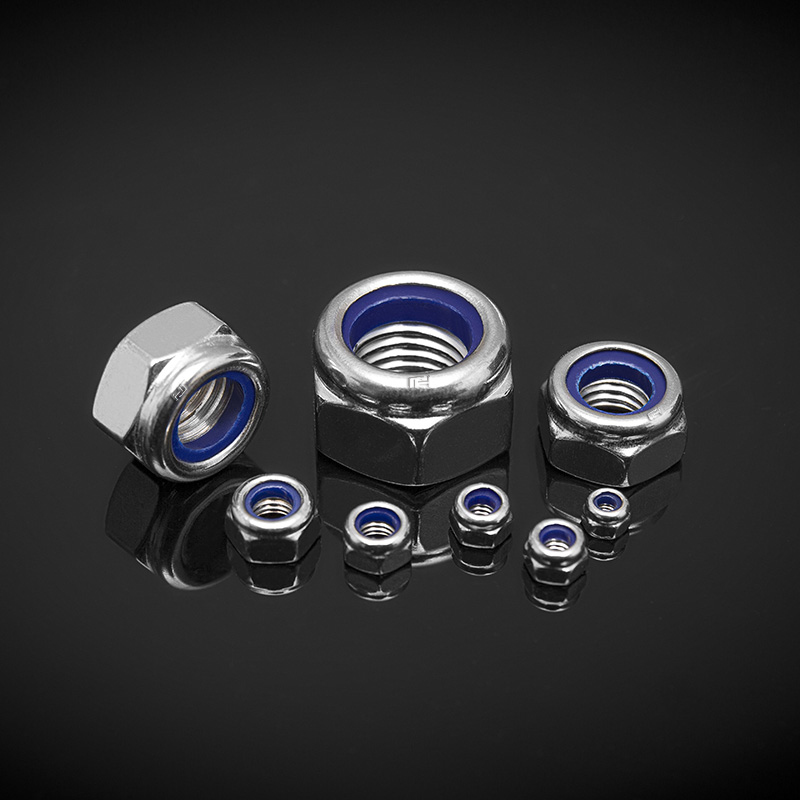

DIN CMLXXXV Steel praevalens Torque Type Hexagon tenues nuces Nonmetallic Insert

DIN CMLXXXV Steel praevalens Torque Type Hexagon tenues nuces Nonmetallic Insert
DIN CMLXXXV Steel praevalens Torque Type Hexagon tenues nuces Nonmetallic Insert DIN CMLXXXV Steel praevalens Torque Type Hexagon tenues nuces Nonmetallic Insert

Species Characteres

Sexangulus, cum non-metallicis densis consilio componentibus

Internus Features

Internum cum materia non-metallicis insertis, ut nylon annulis, frictioni augendae et vi obfirmatis.

Core Propositum

Usus est nexus ligandi ne resolutio et vibratio

Commoda et Features

Internum cum materia non-metallicis insertis, ut nylon annulis, frictioni augendae et vi obfirmatis.

Usus est nexus ligandi ne resolutio et vibratio

Typical Usus

Usus est in electrica apparatu et apparatu, quod requirit conductivity metallum

Key Indicatores ad Electio

Post genus, materia, genus inserta

Industria Imprimis Requisita

Electrical industria: apta iunctio quae impediunt conductionem current.

PREV：DIN6927 Diver Non Metallic Flange Obfirmo NucesDEINDE：Nullus proximus articulum

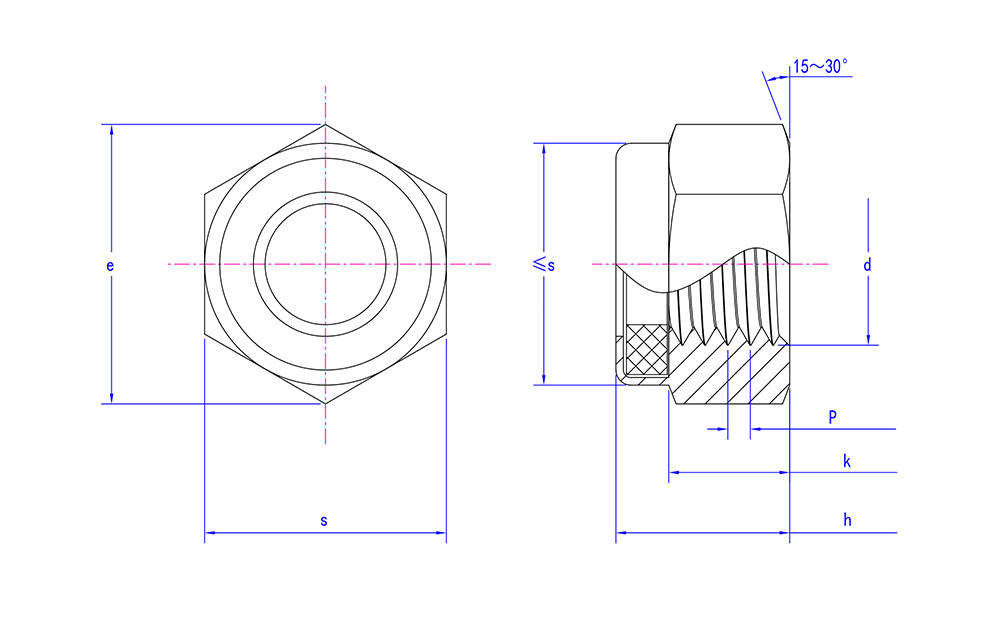

Specificatio product:

Mon M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48
P 0.5 0.7 0.8 1 1 1|1.25 1|1.25|1.5 1.25|1.5|1.75 1.5|2 1.5|2 1.5|2|2.5 1.5|2|2.5 1.5|2|2.5 2|3 2|3 2|3.5 2|3.5 3|4 3|4 3|4.5 3|4.5 3|5
e min 6.01 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 72.09 76.95 82.6
h max 4 5 5 6 7.5 8 10 12 14 16 18.5 20 22 24 27 30 33 36 39 42 45 48
h min 3.7 4.7 4.7 5.7 7.14 7.64 9.64 11.57 13.3 15.3 17.66 18.7 20.7 22.7 25.7 28.7 31.4 34.4 37.4 40.4 43.4 46.4
k min 2.4 2.9 3.2 4 4.7 5.5 6.5 8 9.5 10.5 13 14 15 15 17 19 22 25 27 29 32 36
s max 5.5 7 8 10 11 13 17 19 22 24 27 30 32 36 41 46 50 55 60 65 70 75
s min 5.32 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67 26.16 29.16 31 35 40 45 49 53.8 58.8 63.8 68.1 73.1
