DIN 125 Steel Campo Washers

DIN 125 Steel Campo Washers
DIN 125 Steel Campo Washers DIN 125 Steel Campo Washers

Species Characteres

Circum plana volutpat, plerumque superficies metalli, consilium tenue uniformis

Internus Features

Foraminis circularis intus, gasket saepe uniformis plana

Core Propositum

Onera enim aequaliter distribuendi ne indumentum per contactum directum inter nuces et seras causatum sit

Commoda et Features

Consilium simplex est, bona distributio onus praebet, et facilis est ad utendum.

Typical Usus

Pro elementis mechanicis instrumentis et inferioribus onere nexus

Key Indicatores ad Electio

Materia (ferrum immaculatum), amplitudo (diameter, crassitudo), foraminis magnitudo

Industria Imprimis Requisita

Mechanica industria: Idoneum pro ordinario onere nexum ne recta conterentes.

PREV：ASME/ANSI B18.21.1 (ANSI) SteelDEINDE：Nullus proximus articulum

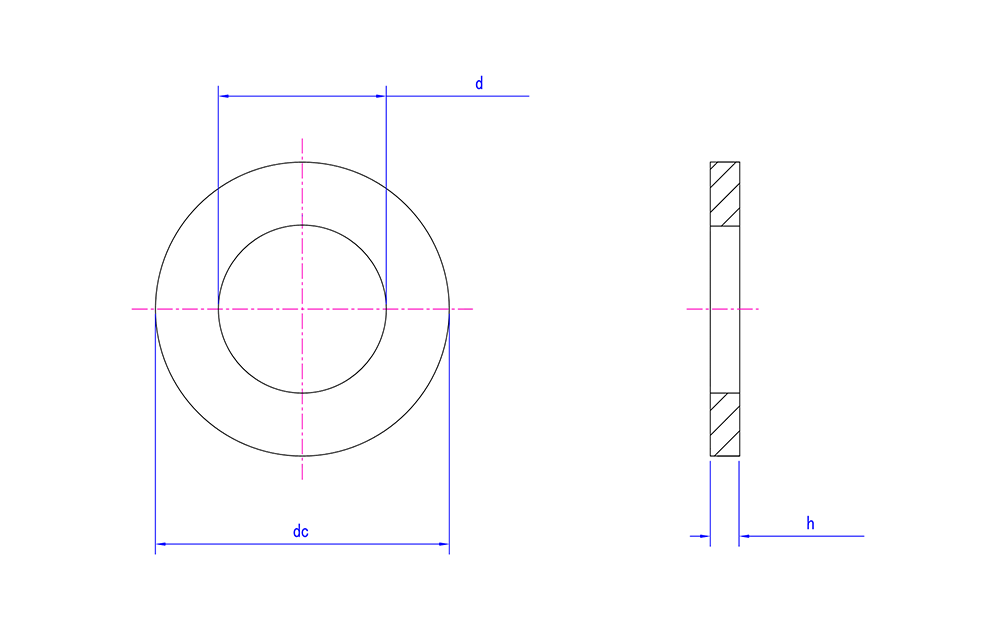

Specificatio product:

Mon Φ1.6 Φ1.7 Φ2 Φ2.3 Φ2.5 Φ2.6 Φ3 Φ3.5 Φ4 Φ5 Φ6 Φ7 Φ8 Φ10 Φ12 Φ14 Φ16 Φ18 Φ20 Φ22 Φ24 Φ26 Φ27 Φ28 Φ30 Φ32 Φ33 Φ35 Φ36
d min 1.7 1.8 2.2 2.5 2.7 2.8 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 27 28 29 31 33 34 36 37
d max 1.84 1.94 2.34 2.64 2.84 2.94 3.38 3.88 4.48 5.48 6.62 7.62 8.62 10.77 13.27 15.27 17.27 19.33 21.33 23.33 25.33 27.33 28.33 29.33 31.39 33.62 34.62 36.62 37.62
dc max 4 4.5 5 6 6 7 7 8 9 10 12 14 16 20 24 28 30 34 37 39 44 50 50 50 56 60 60 66 66
dc min 3.7 4.2 4.7 5.7 5.7 6.64 6.64 7.64 8.64 9.64 11.57 13.57 15.57 19.48 23.48 27.48 29.48 33.38 36.38 38.38 43.38 49.38 49.38 49.38 55.26 58.8 58.8 64.8 64.8
h max 0.35 0.35 0.35 0.55 0.55 0.55 0.55 0.55 0.9 1.1 1.8 1.8 1.8 2.2 2.7 2.7 3.3 3.3 3.3 3.3 4.3 4.3 4.3 4.3 4.3 5.6 5.6 5.6 5.6
h min 0.25 0.25 0.25 0.45 0.45 0.45 0.45 0.45 0.7 0.9 1.4 1.4 1.4 1.8 2.3 2.3 2.7 2.7 2.7 2.7 3.7 3.7 3.7 3.7 3.7 4.4 4.4 4.4 4.4
